High Efficient Electrostatic Powder Spray Painting Gun Kit Factory with CE Approved

Model NO. : DV-PCG

Working Temperature : 5-40 Degree

Selling Points : High Capacitive

Power Supply : 230-240VAC/140va

Maximum Powder Output : 600g/Min

Output Air Pressure : 0-0.5MPa

Maximum Gas Consumption : 0.4MPa/H

Minimum Input Pressure : 6bar/87psi

Maximum Input Pressure : 10bar/145psi

Output Voltage : 0-100kv

Short Circuit Current : 100A

Output Power : 50W

Output Frequency : 50-60Hz

Powder Container Capacity : 40L

Transport Package : Wooden Box for Export

Specification : 2650(L)*2100(W)*2000mm(H)

Origin : Shandong Province

HS Code : 8424899990

Supply Ability : 100 Sets Per Month

After-sales Service : Online Support and Overseas Support Available

Warranty : 1 Year

Type : Coating Spray Gun

Coating : Powder Coating

Certification : CE

Condition : New

Contact Now

Product Description

Company Info.

Customer Question & Answer

Ask something for more details

(0)

Basic Info.

Model NO.

DV-PCG

Working Temperature

5-40 Degree

Selling Points

High Capacitive

Power Supply

230-240VAC/140va

Maximum Powder Output

600g/Min

Output Air Pressure

0-0.5MPa

Maximum Gas Consumption

0.4MPa/H

Minimum Input Pressure

6bar/87psi

Maximum Input Pressure

10bar/145psi

Output Voltage

0-100kv

Short Circuit Current

100A

Output Power

50W

Output Frequency

50-60Hz

Powder Container Capacity

40L

Transport Package

Wooden Box for Export

Specification

2650(L)*2100(W)*2000mm(H)

Origin

Shandong Province

HS Code

8424899990

Production Capacity

100 Sets Per Month

Product Description

High Efficient Electrostatic Powder Spray Painting Gun Kit Factory with CE approved

Features:

Digital control system can display preset voltage and current at the same time.
Preset voltage and current can be set by knobs and is easy to operate.
Alarm automatically if beyond the preset parameters.
Adjust the output static electricity automatically according to the change of workpiece's size and distance.
Could supply large amount powder under low pressure.
The inside circuit region is independent area, avoiding the powder incoming.
Good quality pressure gauge.
Good quality dust-proof power switch.
Low heating value, which can work continuously and steadily.

Specification of Powder Coating Gun:

Electrical Parameters
1. Standard input voltage: 230-240VAC/140VA 2. Frequency: 50 - 60 Hz 3. Output power: 50W 4. Short circuit current: 100A 5. Output voltage: 0-100KV
Pneumatic Parameters	Dimension
1. Max. input air pressure: 10 bar/145psi 2. Min. input air pressure: 6 bar/87psi 3. Output air pressure: 0-0.5 MPA 4. Max air consumption: 0.4MPA/h 5. Max. powder output: 600g/min	1. Width: 460mm 2. Depth: 832mm 3. Height: 1105mm 4. Weight: 46kg

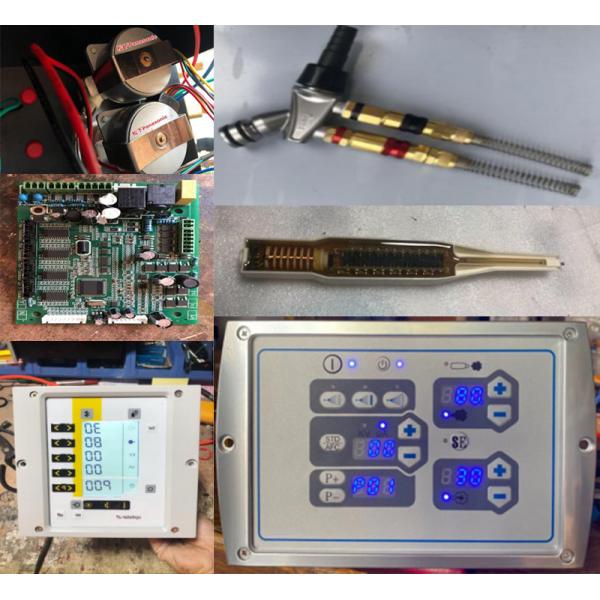

Machine Details:
High Efficient Electrostatic Powder Spray Painting Gun Kit Factory with CE Approved

Other Options:

Applications:

FAQ:

1. Is it safe to operate the machine?

Our equipment is safe, user-friendly and easy to operate, which provides secure setup and all mechanical units can be controlled well.

2. When I get this machine, but I don't know how to use it. What should I do?

There are videos and English manual together with the machine. Also, our technical team is 24 hours online for service support.

3. If some problems happen to this machine during warranty period, what should I do?

We will supply free parts during machine warranty period if machine have some problems. While we also supply free life long after-sales service. If you have any question,just contact us freely.

4. There are so many machine types, which one should I choose?

It is important to compare all data before choose the best prototype. Also, our sales team provides online services to resolve your confusion, please do feel free to contact us.

5. This is my first time to buy your machine; I have no ideas about the machines quality?

Each machine is strictly produced based on the industrial standard and CE certifications. Our products have CE certifications verified by TÜV SÜD, Bureau Veritas and etc. Customer is our first priority. We are confident in our high quality and reliable services.

6. How about the payment terms?
Wire transfer/Western Union/LC/Cash and so on.

High Efficient Electrostatic Powder Spray Painting Gun Kit Factory with CE Approved

Reliable Services:

1. All of machines are fully assembled and thoroughly tested and checked prior to shipment.

2. We provide pre-sales technical advisory services, technical maintenance training and operational training services.

3. We provide free repair for main spare parts within warranty period according to warranty agreement.

4. We provide upgrades and maintenance for software system within warranty period.

5. We provide technical maintenance and repair for third-party hardware and software products according to third-party manufacturer's warranty-grade.

6. We provide preferential lifetime maintenance of all equipment, spare parts are charged according to the prevailing market price beyond warranty period.
