Handheld Fiber Laser Welding Machine Laser Welders for Steel

Model NO. : DV-LW

Laser Classification : Optical Fiber Laser

Type : Portable Welding Machine

Working Temperature : 5-40 Degree

Selling Points : Powerful and Multi-Functional

Cable Length : 10m or Customized

Cooling Mode : Water Cooling

Power Supply : 220V/380V,50-60Hz

Advantage : High Efficient, Powerful and Convenient

Wire Filler : Yes

Transport Package : Wooden Box

Specification : 1-2CBM

Origin : Shandong Province

HS Code : 8515809090

Supply Ability : 50 Sets Per Month

After-sales Service : Online Support and Overseas Support Available

Warranty : 2 Years Warranty

Application : Electronic Industry

Technical Class : Continuous Wave Laser

Control : Automatic

Power Density : Deep Fusion Welding

Contact Now

Product Description

Company Info.

Customer Question & Answer
Ask something for more details

Basic Info.

Model NO.
DV-LW
Laser Classification
Optical Fiber Laser
Type
Portable Welding Machine
Working Temperature
5-40 Degree
Selling Points
Powerful and Multi-Functional
Cable Length
10m or Customized
Cooling Mode
Water Cooling
Power Supply
220V/380V,50-60Hz
Advantage
High Efficient, Powerful and Convenient
Wire Filler
Yes
Transport Package
Wooden Box
Specification
1-2CBM
Origin
Shandong Province
HS Code
8515809090
Production Capacity
50 Sets Per Month

Product Description

Handheld Fiber Laser Welding Machine Laser Welders For Steel Handheld Fiber Laser Welding Machine Laser Welders for Steel

Parameters:
ModelDV-LW
Laser Power1000W/1500W/2000W
Laser TypeFiber Laser
Wavelength1070nm
Voltage220V±10% / 50Hz / 30A
Gross Power<8KW
Welding Thickness< 8mm
Welding Gap Requirements≤0.5mm
Welding Speed0~120 mm/s
Welding Head ConfigurationSwing Welding Head + Water Cooling (optional)
Laser OperationContinuous/Modulation
Beam Divergence Angle≤1.2mrad/m
Welding Joint InterfaceQBH
Fiber Wire Length10m
Spot Dia0.2-2mm Adjustable
PositioningRed Pointer
Cooling SystemIndustrial Chiller
Operating Temperature15~35 ºC
Specifications:

1. It could be widely used in complex and irregular welding process such as cabinets, kitchen, staircase, shelf, gridiron, stainless steel door and window guardrail, distribution box, stainless steel furniture and other industries. It is a perfect replacement of traditional argon arc welding, in welding thin stainless steel plate, iron plate, aluminum plate and other metal materials.
2. Smart internal design and interactive control system expand the tolerance range and welding width of the processing parts, and solve the disadvantage of minor laser welding spot, and provide better welding forming.
3. Light shape, Ergonomic design, advanced structure, and reliable performance ensure comfort grip and simple operation.
4. Nice welding seam, fast welding speed, no consumables, no welding marks, no discoloration, no later polish.

Handheld Fiber Laser Welding Machine Laser Welders for Steel
Advantage:

Handheld Fiber Laser Welding Machine Laser Welders for Steel

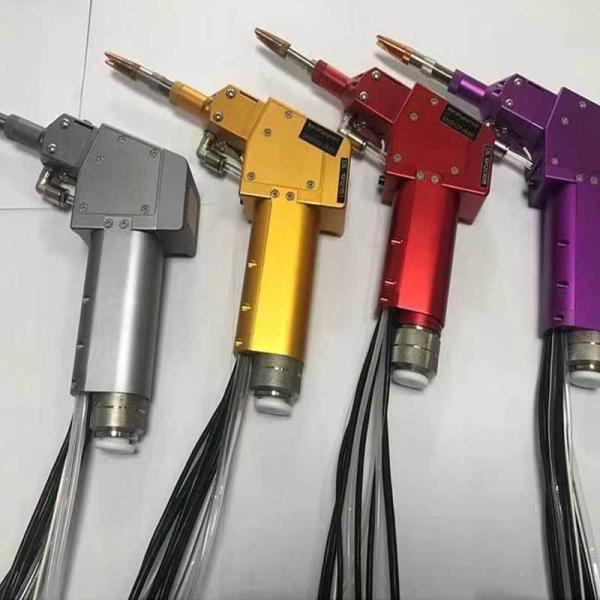

Machine Details of Laser Welder:
Handheld Fiber Laser Welding Machine Laser Welders for Steel
Professional fiber laser welding head;

It's handheld type which is of ergonomic design;

This head could be equipped with a variety of angular nozzles to meet the welding needs of different products.
Laser Power: 1kw/1.5kw/2kw;

Laser Source: Raycus/MAX/JPT for option;

Cooling Mode: Industrial Hanli Water Chiller;

Power Supply: 220V/380V,50-60Hz
Handheld Fiber Laser Welding Machine Laser Welders for Steel

Layout of Laser Welding Machine:

Handheld Fiber Laser Welding Machine Laser Welders for Steel


Application:
Handheld Fiber Laser Welding Machine Laser Welders for Steel
Handheld Fiber Laser Welding Machine Laser Welders for Steel
Reliable Services:

1. All of machines are fully assembled and thoroughly tested and checked prior to shipment.

2. We provide pre-sales technical advisory services, technical maintenance training and operational training services.

3. We provide free repair for main spare parts within warranty period according to warranty agreement.

4. We provide upgrades and maintenance for software system within warranty period.

5. We provide technical maintenance and repair for third-party hardware and software products according to third-party manufacturer's warranty-grade.

6. We provide preferential lifetime maintenance of all equipment, spare parts are charged according to the prevailing market price beyond warranty period.

Handheld Fiber Laser Welding Machine Laser Welders for SteelHandheld Fiber Laser Welding Machine Laser Welders for Steel
FAQ:

1. Is any kind of gas needed?
Nitrogen or argon is ok as auxiliary gas for laser welding.

2. Is professional technician needed to operate this machine?
No. It's easy to operate and 0 experience worker can operate it and make it.

3. Is wire filler needed or not?
For thick material welding or if there's gap, wire filler is needed, which can increase the welding strength and penetration.

4. What type of welding wire is needed ?
Using gas shielded welding wire, diameter:0.8mm,1.0mm and 1.2mm.

If you have any questions, Please contact us !

Handheld Fiber Laser Welding Machine Laser Welders for Steel

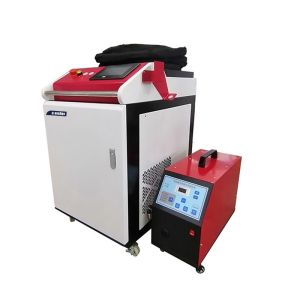

Wholesale Handheld Fiber Laser Welding Machine Laser Welders for Steel from china suppliers
